BLADES and Optional parts

Signs on ZO-91/ZO-95 column is representing which power mode is available.
“◎” Corresponding to Normal/High/S-high
“○” Corresponding to Normal/High. S-high is prohibited.
“N” Corresponding to Normal. High/S-high are prohibited.
“X” Unable to use with the model.

*1 Blade vibration may become weaker when the blade is pressed to metal material.
※Click link to watch movie (YouTube), how to use it.

Blade info.			Picture	ZO-91	ZO-95	YouTube
Blade	HA04	Standard blade		〇	◎	YouTube
	ZH01A	Sharp edge blade 16°(Revision)		N	N
	ZH03	Curving blade (4 mm/R 5)		〇	〇	YouTube
	ZH05A	Flat blade (1 mm)		〇	○
	ZH06A	Flat blade (2 mm)		〇	○
	ZH07	Flat plate (1 mm)		〇	○
	ZH08	Flat plate (2 mm)		〇	○
	ZH09	Round tip blade (R 15)		〇	〇
	ZH10	Long blade (25 mm)		〇	◎	YouTube
	ZH11	Saw blade		〇	○
	ZH12	Square pyramid blade		〇	〇
	ZH14	Thin blade (5 pcs. set)		N	N
	ZH16	Thin long blade (5 pcs. set)		N	N
	ZH18	Curving blade (1 mm)		〇	○	YouTube
	ZH19	Curving blade (2 mm)		〇	○
	ZH20	Curving blade (3 mm)		〇	○
	ZH23	Filing plate #325 (4 mm)		〇	○
	ZH38	Welding blade (2 mm)		〇	○
	ZH41	Square blade		〇	〇
	ZH42	Round tip blade		〇	〇
	ZH48	Zirconia ceramic blade		〇	○
	ZH52	Flat round blade		N	○
	ZH54	Welding bar		〇	〇	YouTube
Grinding stone	ZH24	Grinding stone #800 Color: Blue		N	N	YouTube
	ZH26	Grinding stone #120 Color: Green		N	N	YouTube
	ZH27	Grinding stone #180 Color: Gold		N	N	YouTube
	ZH28	Grinding stone #300 Color: Brown		N	N	YouTube
	ZH29	Grinding stone #400 Color: Orange		N	N	YouTube
	ZH30	Grinding stone #600 Color: Gray		N	N	YouTube
	ZH31	Grinding stone #1000 Color: White		N	N	YouTube
	ZH32	Grinding stone #1200 Color: Red		N	N	YouTube
	ZH51	Grinding stone #80 Color: Purple		N	N	YouTube
	ZH55	Grinding stone bar #80 Color: Purple		N	×	YouTube
	ZH56	Grinding stone bar #120 Color: Green		N	×	YouTube
	ZH57	Grinding stone bar #180 Color: Gold		N	×	YouTube
	ZH58	Grinding stone bar #300 Color: Brown		N	×	YouTube
	ZH59	Grinding stone bar #400 Color: Orange		N	×	YouTube
	ZH60	Grinding stone bar #600 Color: Black		N	×	YouTube
	ZH61	Grinding stone bar #800 Color: Blue		N	×	YouTube
	ZH62	Grinding stone bar #1000 Color: White		N	×	YouTube
	ZH63	Grinding stone bar #1200 Color: Red		N	×	YouTube
Discontinued	ZH34	Filing plate #325 (1 mm)		〇	〇
	ZH35	Filing plate #325 (2 mm)		〇	〇
	ZH36	Filing plate #325 (3 mm)		〇	〇
	ZH39	Electrodeposited filing plate with square pyramid		〇	〇
	ZH44	Double-edged triangular pyramid		〇	〇
	ZH45	Circular tip φ0.4 blade		N	〇
	ZH47	Electrodeposited filing plate with round tip blade (#325)		〇	〇
	ZH49	Electrodeposited filing plate with curving blade 1 mm		〇	〇

Parts info.		Picture	ZO-91	ZO-95	YouTube
Blade anchor	ZH04		–	–
Blade anchor for thin blade	ZH15		N	N
Bar anchor	ZH53		–	–

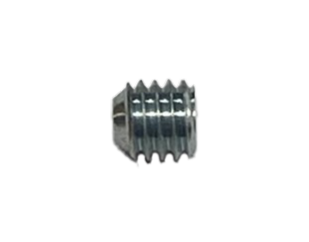

Blade anchor screw	HB03		–	–
Maintenance set	SB01		–	–	YouTube
Maintenance set	SB02		–	–	YouTube

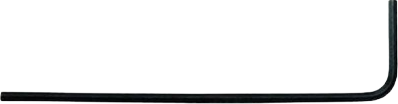

Hexagon wrench	RR02		–	–	YouTube
Hexagon wrench	RR03		–	–
Torque screwdriver	ZH25T2		–	–	YouTube
Type-C cable for USB-PD 12V	ZH67		–	–
Cutting mat	CM02		–	–
Goggle	ZH13
Carrying case	CB02		–	–
	ZH804		–	–
	ZH46		–	–
Blade anchor and set items	ZH04S	Blade anchor set ・Blade anchor ZH04 x 1 ・Blade anchor screw HB03 x 1 ・Hexagon wrench RR02 x 1	–	–
	ZH14S	Thin blade set ・Thin blade ZH14 (5 pcs.) x 1 ・Blade anchor ZH15 x 1 ・Blade anchor screw HB03 x 1	N	N
	ZH14SG	Thin blade and goggle set ・Thin blade ZH14 (5 pcs.) x 1 ・Blade anchor ZH15 x 1 ・Blade anchor screw HB03 x 1 ・Goggle ZH13 x 1	N	N
	ZH15S	Blade anchor for thin blade set ・Blade anchor ZH15 x 1 ・Blade anchor screw HB03 x 1 ・Hexagon wrench RR02 x 1	N	N
	ZH16S	Thin long blade set ・Thin long blade ZH16 (5 pcs.) x 1 ・Blade anchor ZH15 x 1 ・Blade anchor screw HB03 x 1	N	N
	ZH16SG	Thin long blade and goggle set ・Thin long blade ZH16 (5 pcs.) x 1 ・Blade anchor ZH15 x 1 ・Blade anchor screw HB03 x 1 ・Goggle ZH13 x 1	N	N

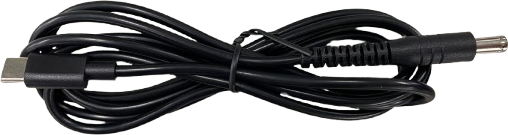

Type-C Cable ZH67
Cable for connecting ultrasonic cutter ZO series and mobile battery (Type-C, 12V).
※Mobile battery is not included.

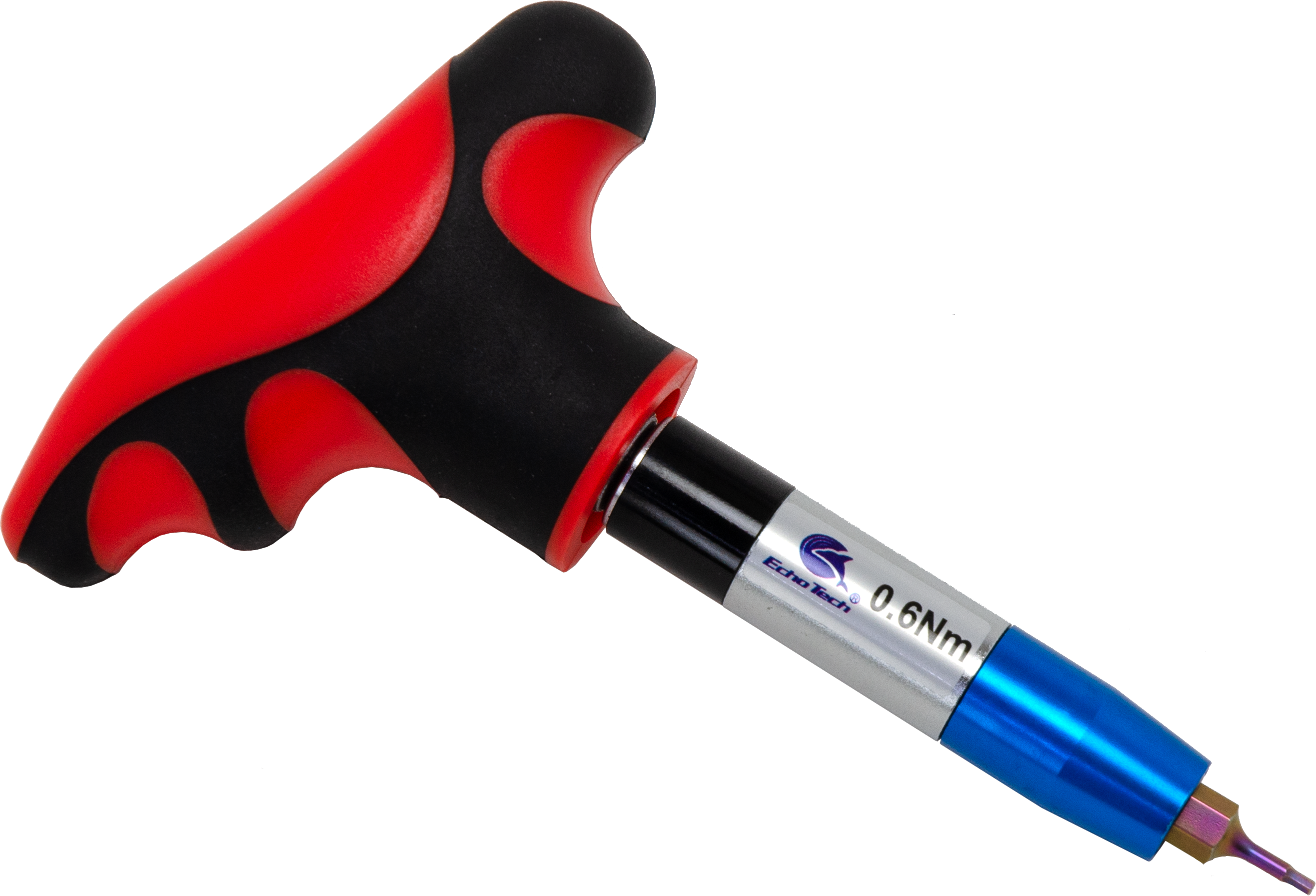

Torque screwdriver ZH25T2
Tool for tighten blade anchor screw with 0.6 Nm torque level.

Cutting mat CM02
Mat made of urethane prevents blade piercing table. Size: 3×150×200 (mm)

Parts box
Compact box for keeping blades inside.

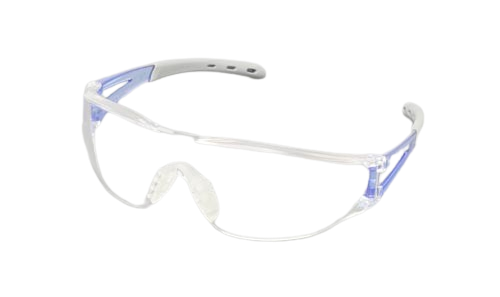

Goggle ZH13
Goggle protects your eyes from blade flew while working.

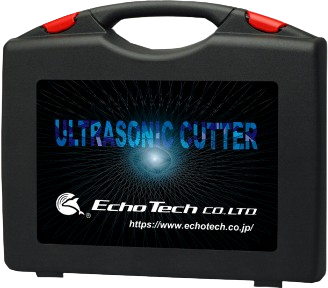

Carrying case for ZO-91 (ZH46A) / ZO-95 (ZH804A)
Case that can pack ultrasonic cutter ZO series and optional parts to bring somewhere.

Foot switch for ZO-95 ZH801
By connecting this foot switch to ZO-95, it can be able to control ultrasonic with foot.
